Globe Valve

Globe Valve

Product Details:

X

Product Description

Product Description :

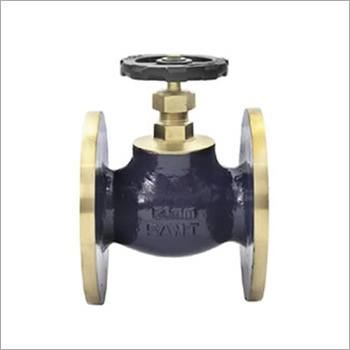

Product : 'SANT' Gun Metal Globe Valve

Product : 'SANT' Gun Metal Globe Valve

Product Standard : IS-778

Pressure/Class/Rating : Class-1

Body Material cum Standard : GM ( IS:318 Gr.LTB2 )

Description : Screwed in Bonnet, Inside Screw, Rising Stem

Type of Seat : Integral seat

Trim : Cu-Alloy

Gland Packing : Asbestos/Hemp & Jute

End Details : Flanges as per IS:778 Class-1 F.F. undrilled


Testing And Certification :

Body Test Pressure : 1.5 MPa Hyd.

Seat & Back Seat Test Pressure : 1.0 MPa Hyd.

Our Works' Test Certificate is furnished with every supply.

Specification :

Components

Materials

Specifications

Body, Bonnet, Disc, Gland & Gland Nut

Gun Metal / Leaded Tin Bronze

IS:318 Gr.LTB2

Spindle

Forged Brass

IS:6912 FLB

Handwheel

Cast Iron / Steel

IS:210 Gr.FG200 / IS:513

Gland Packing

Asbestos / Hemp & Jute

IS:4687 / IS:5414

Screw & Washer for Handwheel

Mild Steel

IS:1367 / IS:513


Dimensions in mm :

Nominal Size

Nominal Size (Inches)

F

H

W

15

1/2

75

85

60

20

3/4

85

90

60

25

1

95

115

65

32

1.1/4

110

120

85

40

1.1/2

120

130

90

50

2

145

135

100

65

2.1/2

165

170

140

80

3

185

200

175

100

4

216

230

200
